3 FLEXIBLE CELLS INNERDUCT 45 MM WIDTH
3 Cells mesh innerduct
Product description

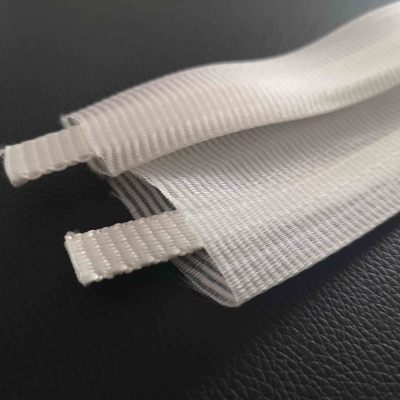

Textile mesh formed by three cells sewn to subconduct.
Materials: This product is made with high hardness polymers to avoid friction. Both when positioning the mesh inside the tube and when introducing the cable inside each cell.
- This material does not absorb liquids.
- It has almost zero conductivity.
- Compatible and adaptable to already built networks.
- Quick installation.
- Bands differentiated by colors within each cell to pull on the cable.
- Meter marking.
Características técnicas
Parameters
Breaking stress > 1400 kg.
Elongation with load of 50 kg < 2 %
Melting temperature > 215 ºC
Dimensions and weights
Linear density: 112 kg/km

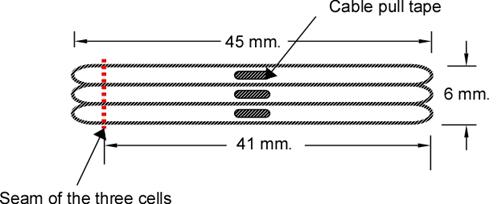

External width of the mesh: 45 mm
Internal width of each cell: 41 mm
Thickness: 6 mm
Maximum cable diameter allowed inside each cell: 23 mm
Standard packaging
Coil of 2 km
With dimensions: 120 cm de diameter y 50 cm wide.
Gross weight of the coil = 261 kg
3-cell textile netting
We help you choose the best option
One of the objectives that our company has set is the advice and training of our customers to save costs in network deployments and laying fiber optic cables. With this three-cell textile mesh we reduce the need for space in the ducts and keep the cables aligned and organized inside the duct.
With this three-cell textile mesh we reduce the need for space in the ducts and keep the cables aligned and organized inside the duct
